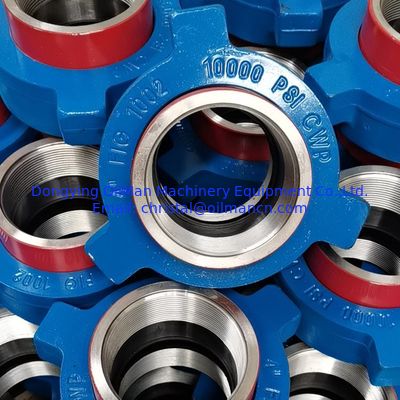

API Fig100, Fig200, Fig206, Fig402, Fig602, Fig1002 NPT Threaded Butt Weld FMC Weco Type Hammer Unions
Подробная информация о продукте:
| Место происхождения: | КИТАЙ |
| Сертификация: | API |
| Номер модели: | Фиг. 1502 1002 602 400 402 206 100 |
Оплата и доставка Условия:
| Количество мин заказа: | ПК 5 |
|---|---|
| Цена: | USD20-200/pc |
| Упаковывая детали: | Экспорт деревянного корпуса |
| Время доставки: | 15-25 рабочих дней |
| Условия оплаты: | L/C, T/T, Western Union, Moneygram |
| Поставка способности: | 20000 штук в месяц |
|
Подробная информация |
|||
| Название продукта: | API Fig100, Fig200, Fig206, Fig402, Fig602, Fig1002 NPT резьбовые сварки FMC Weco Type Uniions Union | Ключевые слова: | Союза молотка |
|---|---|---|---|
| Измерение: | 1 " - 8" | Рабочее давление: | 7MPa ((1000psi) - 105MPa ((15000psi) |
| Связь: | Задница сварная или с нитью | Компонент: | Женщина, мужчина, орешек |
Характер продукции

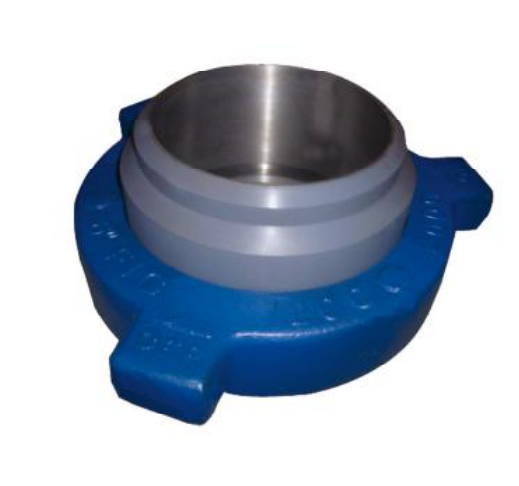

API Fig100, Fig200, Fig206, Fig402, Fig602, Fig1002 NPT Threaded Butt Weld FMC Weco Type Hammer Unions
High pressure union is introduced technology from FMC and SPM company, is made of high strength alloy steel forging. Strict heat treatment can ensure that the fitting has even metallographic structure and pressure bearing capacity; all material shall fully comply with USA ASTM and AISI standard; technical index shall fully comply with API Spec 16C standard; the product has reliable seal, quick connecting and disconnecting, interchange ability performance. The product can use pipeline thread, tubing tread, butt welding or non-pressure seal end connection.

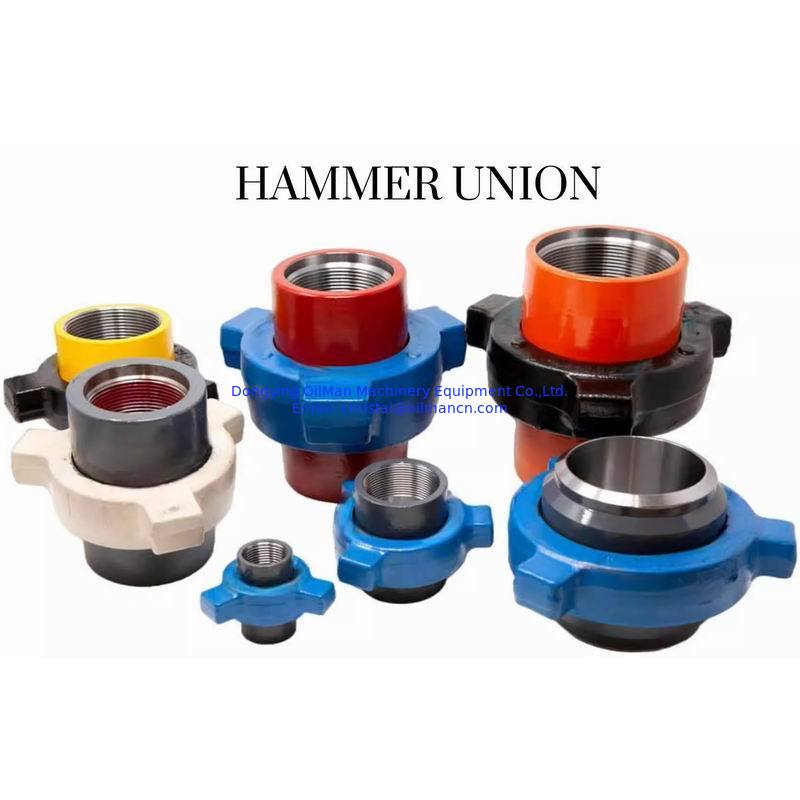

Hammer Union type mainly consists of Figure50, Figure100, Figure200, Figure206, Figure207, Figure400, Figure600, Figure602, Figure1002, Figure1003 and Figure1502, etc.
FIG100
1,000 psi cold working pressure
Recommended service
Manifold and line connections
Features
* Pressure-tight make-up with hammer
* Economical low-pressure union
A: precision sealing surface binding guarantees reliable pressure seal.
B: recommended the use of low pressure manifold and the work pressure is not more than 1000Psi.
B: type 100 Hammer Union, 1000PSI NSCWP, the test pressure 1500PSI black nuts, yellow parts
Recommended service
Manifold and line connections
Features
* Pressure-tight make-up with hammer
* Economical low-pressure union
A: precision sealing surface binding guarantees reliable pressure seal.
B: recommended the use of low pressure manifold and the work pressure is not more than 1000Psi.
B: type 100 Hammer Union, 1000PSI NSCWP, the test pressure 1500PSI black nuts, yellow parts
FIG200
2,000 psi cold working pressure
Recommended service
General service manifolds and lines
Features
* Economical, general-purpose union
* 1 to 8-inch sizes
A: the union of compact structure, widely used in low-pressure well pipeline, can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.
C: type 200 Hammer Union, 2000PSI NSCWP, the test pressure 3000PSI blue nut, grey parts
Recommended service
General service manifolds and lines
Features
* Economical, general-purpose union
* 1 to 8-inch sizes
A: the union of compact structure, widely used in low-pressure well pipeline, can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.
C: type 200 Hammer Union, 2000PSI NSCWP, the test pressure 3000PSI blue nut, grey parts
FIG206
2,000 psi cold working pressure
Recommended service
Manifold line connections, suction service, and corrosion service
Features
* O-ring in male sub improves sealing and protects metal-to-metal seal against corrosion
* Replaceable O-ring extends union service life
* 1 to 8 inch sizes
A: the union of compact structure, widely used in low-pressure well pipeline,
can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.
C: type 2006Hammer Union, 2000PSI NSCWP, the test pressure 3000PSI
blue nut, grey parts.
Recommended service
Manifold line connections, suction service, and corrosion service
Features
* O-ring in male sub improves sealing and protects metal-to-metal seal against corrosion
* Replaceable O-ring extends union service life
* 1 to 8 inch sizes
A: the union of compact structure, widely used in low-pressure well pipeline,
can also be used in the medium pressure range of air, water, oil or steam applications requirements.
B: the available models use the welding Sch.40.
C: type 2006Hammer Union, 2000PSI NSCWP, the test pressure 3000PSI
blue nut, grey parts.
FIG400
4,000 psi cold working pressure through 4-inch sizes; 2,500 psi cold working pressure, 5 through 12-inch sizes
Recommended service
Manifold line connections, pump suction, and mud services
Features
* 2-1/2 through 12-inch sizes have O-rings for primary seal
* Butt-weld available
* Available for sour gas service
See specifications tables (pages WU1A to WU6A) for sizes, dimensions,
weights, materials, and part numbers
Recommended service
Manifold line connections, pump suction, and mud services
Features
* 2-1/2 through 12-inch sizes have O-rings for primary seal
* Butt-weld available
* Available for sour gas service
See specifications tables (pages WU1A to WU6A) for sizes, dimensions,
weights, materials, and part numbers

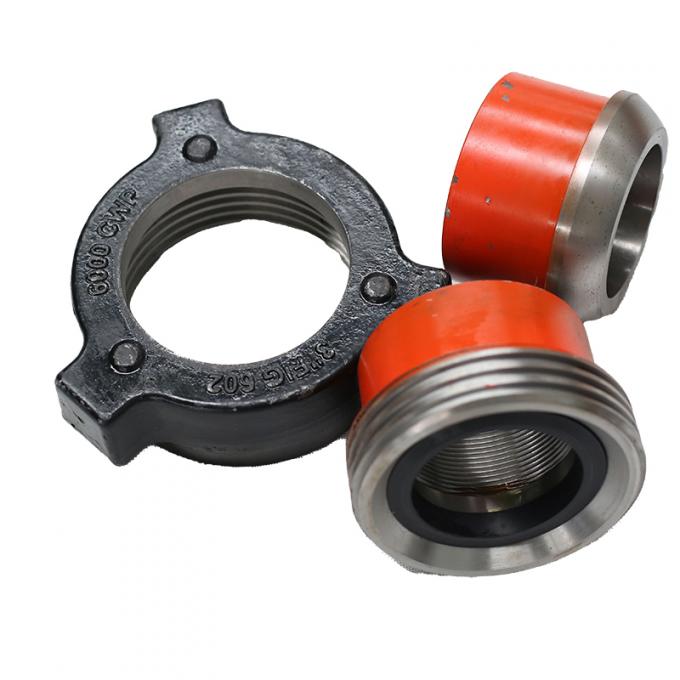

FIG602
6,000 psi cold working pressure
Recommended service
Manifold line connections and mud service
Features
* Replaceable, lip-type seal provides primary seal, protects
secondary metal-to-metal seal, and minimizes
Flow turbulence
* Butt-weld available
* Available for sour gas service at 6,000 psi cold working pressure
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
Recommended service
Manifold line connections and mud service
Features
* Replaceable, lip-type seal provides primary seal, protects
secondary metal-to-metal seal, and minimizes
Flow turbulence
* Butt-weld available
* Available for sour gas service at 6,000 psi cold working pressure
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
FIG1002
10,000 psi cold working pressure through 4-inch sizes; 7,500 psi cold working pressure, 5 and 6-inch sizes
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
Features
* Replaceable, lip-type seal
* 5 and 6-inch sizes have O-rings for primary seals
* Available for sour gas service: 7,500 psi cold working pressure
* Butt-weld available
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
Features
* Replaceable, lip-type seal
* 5 and 6-inch sizes have O-rings for primary seals
* Available for sour gas service: 7,500 psi cold working pressure
* Butt-weld available
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
FIG1003
Misaligning union
10,000 psi cold working pressure, 2 and 3-inch sizes; 7,500 psi cold working pressure, 4 and 5-inch sizes
Recommended service
For high-pressure connections where lines cannot be aligned
Features
* Ball seat provides positive seal with up to 7-1/2 misalignment; 2-inch model up to 4°
* Replaceable O-ring on male sub provides primary seal
* Available with threaded or butt-weld ends
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
10,000 psi cold working pressure, 2 and 3-inch sizes; 7,500 psi cold working pressure, 4 and 5-inch sizes
Recommended service
For high-pressure connections where lines cannot be aligned
Features
* Ball seat provides positive seal with up to 7-1/2 misalignment; 2-inch model up to 4°
* Replaceable O-ring on male sub provides primary seal
* Available with threaded or butt-weld ends
See specifications tables (pages WU1A to WU6A) for sizes, dimensions, weights, materials, and part numbers
FIG1502
15,000 psi cold working pressure
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
Features
* Replaceable, lip-type seal
* Available for sour gas service: 10,000 psi cold working pressure; butt-weld
or non-pressure seal configurations only
* Butt-weld available
See specifications tables (pages WU1A to WU6A) for sizes, dimensions,
weights, materials, and part numbers
Recommended service
Cementing, fracturing, acidizing, testing, and choke-and-kill lines
Features
* Replaceable, lip-type seal
* Available for sour gas service: 10,000 psi cold working pressure; butt-weld
or non-pressure seal configurations only
* Butt-weld available
See specifications tables (pages WU1A to WU6A) for sizes, dimensions,
weights, materials, and part numbers
If any needs, pls contact us freely:
Dongying OilMan Machinery Equipment Co.
Address: North Two Road, Dongying City, Shandong Province, China.
Mob/whats app/we chat:+86 13475294399
*Email: christal@oilmancn.com Website:www.oilmanchina.com
